RA Taurus TX5 & TS2
Concentrate Pipeline Protection to Flotation Cell
Chile

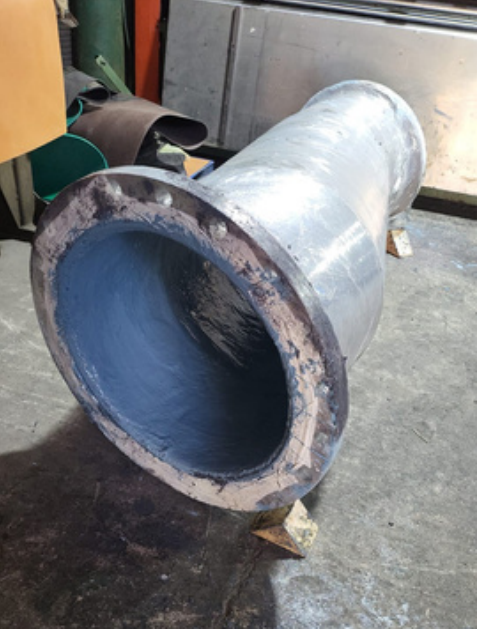

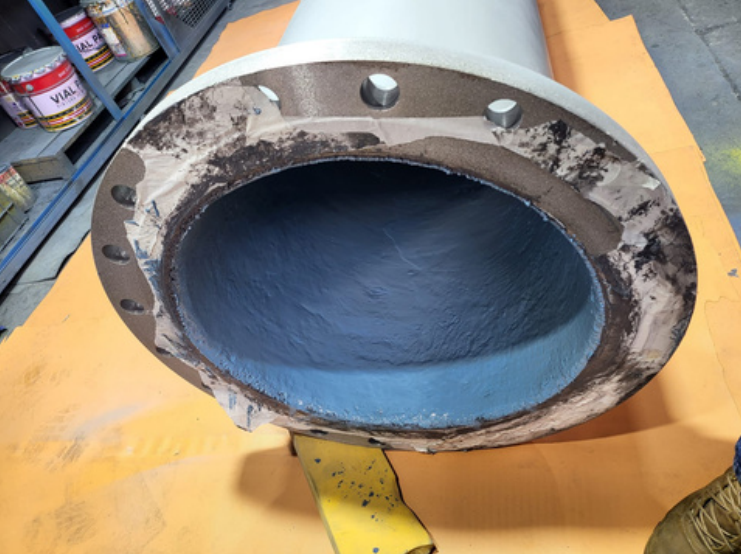

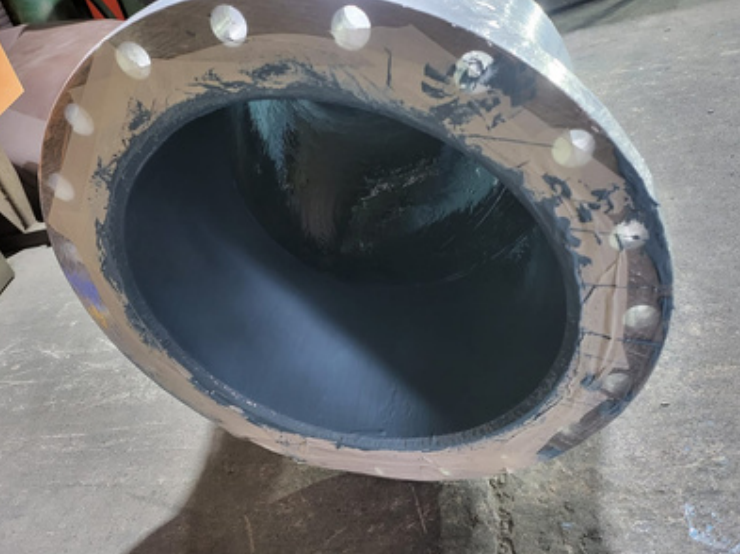

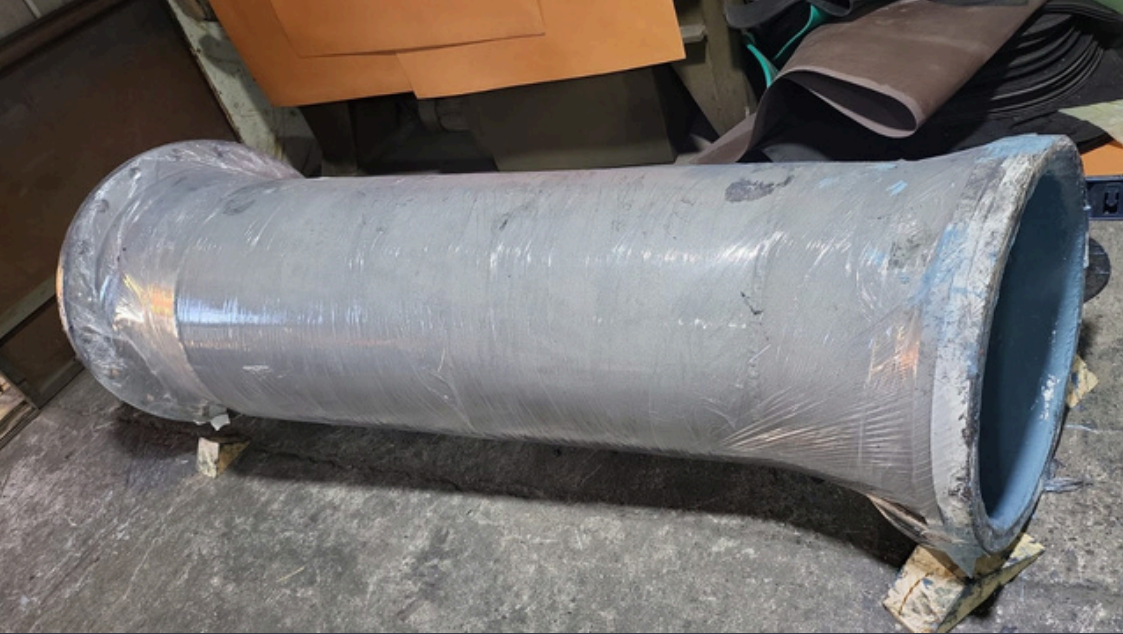

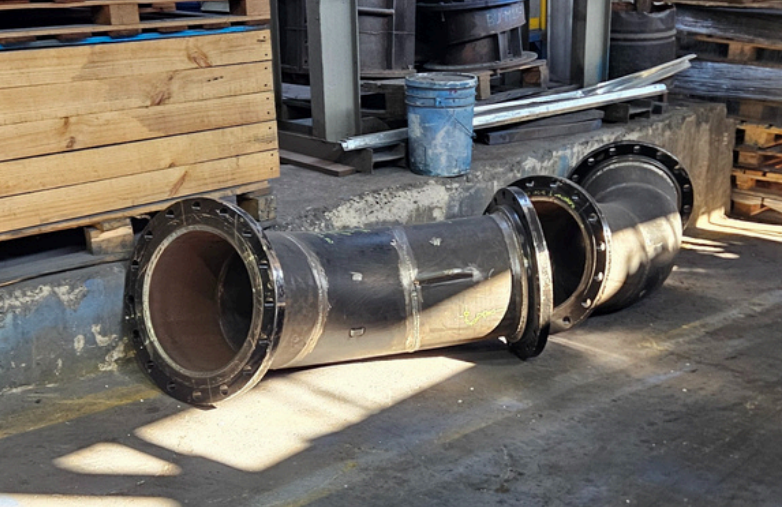

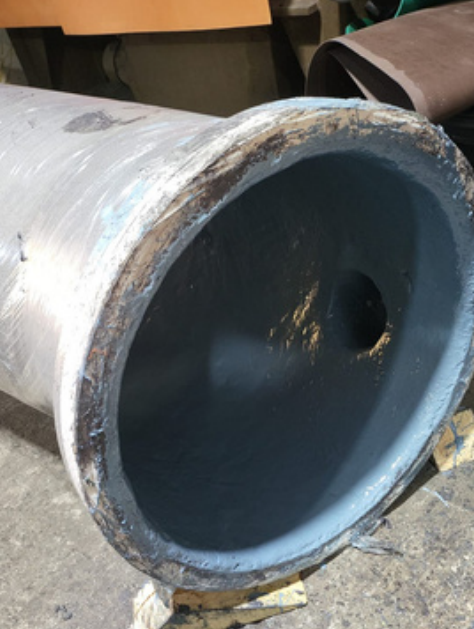

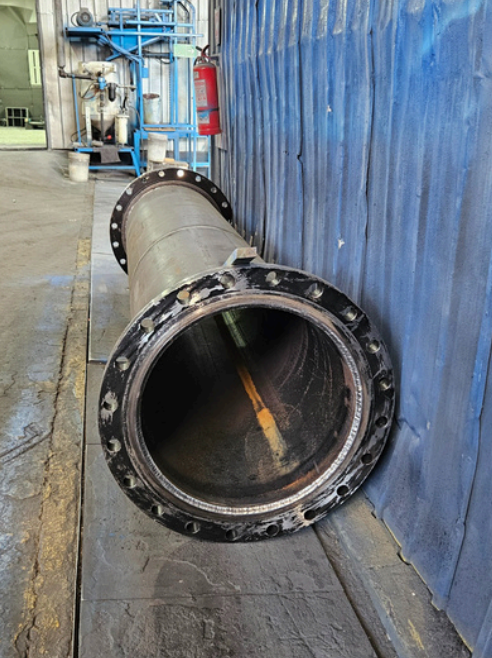

Protection of copper concentrate transport pipeline to flotation cell. Taurus TX5 was installed along the entire

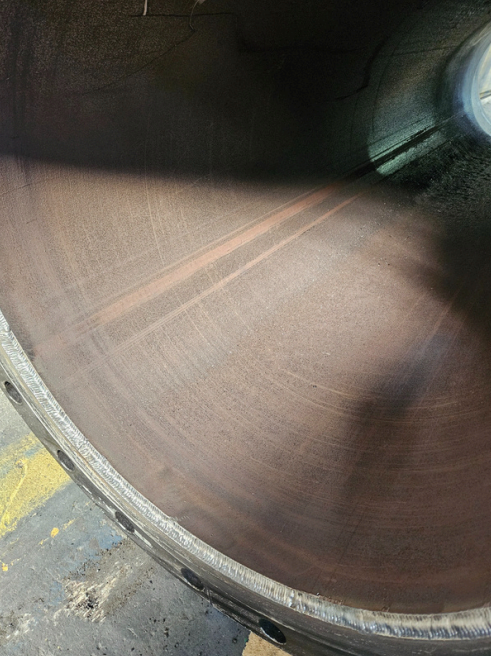

circumference of the pipeline to ensure total control of abrasion caused by high-velocity copper concentrate. TS2 provides a thin, brush-applied ceramic epoxy layer to protect against corrosion, improving internal pipe flow. Additionally, the fast-curing TX5 applied at 6.0 mm thickness allows for reduced workshop time. Surface preparation was carried out by abrasive blasting to white metal.

Operating Conditions

Ambient temperature

Objective

Protect the metal against abrasion and corrosion.

Location

Chile
