RA Taurus Bandage Kit Ultra – Mine – Peru

RA Taurus Bandage Kit Ultra
Mine - Peru

Leaking Pipeline

This report presents the application of the Taurus Bandage Ultra Kit, an advanced leak repair system for pipelines, designed for fast and safe interventions, even under active pressure. The purpose of the intervention was to restore the operational integrity of the line in a short timeframe, without requiring a full process shutdown.

Leak repair in up to 30 minutes
Supports active pressure up to 150 psi (11 kg/cm²)
Withstands final pressure up to 500 psi (35 kg/cm²)
Handles temperatures up to 200°C (392°F)
Applicable to pipelines up to 18″ (457 mm)
Suitable for repairs on: tees, elbows, joints, connections, and
valve bodies
Designed and calculated according to ASME PCC-2

Operating Conditions

The pipeline had an active leak, which required an immediate solution. The system was operating under high pressure and elevated temperature, making it impossible to perform welding or conventional repairs without interrupting operations.

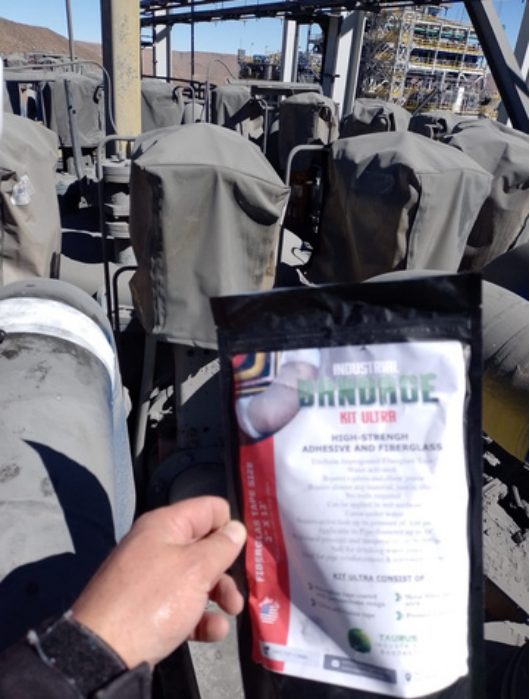

Product Used

The ultra pipe repair kit for pressurized lines consists of:

Roll of Fiberglass Tape
Roll of Self-Fusing Tape
Fast-curing Epoxy Stick
Pair of latex gloves

Application Procedure

Isolation and surface cleaning of the affected area, removing any loose contaminants.
Installation of the Epoxy Stick composite directly over the leak area for initial containment.
Immediate application of the self-fusing tape, ensuring continuous compression over the repaired area.
Fiberglass tape is applied with fast curing of the material, completing the process in approximately 30 minutes.
Visual inspection and operational verification of the line.

Location

Peru

Details of this case

Results Achieved

The application of the Taurus Bandage Kit Ultra was successfully completed, delivering:

Immediate elimination of the leak
Fast operational recovery, with no need for a plant shutdown
Firm and uniform finish, ensuring excellent adhesion
Efficient performance even under active pressure
Durable structural reinforcement, suitable for continuous operation

The repair demonstrated high efficiency, speed, and reliability, confirming the product as the ideal choice for emergency situations and harsh industrial environments.

Conclusion

The Taurus Bandage Kit Ultra proved its effectiveness as a rapid repair solution for pressurized pipelines. Its short curing time and ability to withstand extreme conditions allowed operations to be safely and efficiently restored, fully meeting the client’s needs.
